1  Seasonal forcing model

1.1 Overview

Aim of this section:

  • Illustrate the forcing model based on the book Modeling Infectious Diseases in Humans and Animals by Matt Keeling and Pejman Rohani(Keeling and Rohani 2008)

  • Understanding the mechanisms that generate periodic outbreaks of childhood infectious diseases

  • Use odin package to generate the model with time varying transmission rate.

1.2 Historical background

Arthur Ransome settled on changes in the density of susceptibles as the most likely explanation for mechanisms that may generate regular epidemics of measles, whooping cough, and smallpox.

Exanthematous diseases wipe out nearly all susceptibles and, as a consequence, must necessarily wait a number of years before the requisite nearness of susceptible individuals has been again secured.

Case report data for measles, which conforms well to the assumptions of the SIR model, show large amplitude recurrent epidemics with very dramatic peaks and troughs.

=> This is in direct contrast to the equilibrium dynamics predicted by simple models, with a steady incidence of disease.

1.2.1 Soper study

Focusing on the monthly case reports for measles in Glasgow from 1905–1916, (Soper 1929)proceeded to estimate relative transmission rates per month. His methodology centered on the argument that:

\[\frac{cases\ this\ interval}{cases\ last\ interval} \sim \frac {Number\ of\ susceptibles\ now}{Equilibrium\ number\ of\ susceptibles'} \] which can be expressed as the following equation:

\[(\frac{C_{t+1}}{C_{t}})^{\alpha}=k_{\theta}\frac{X_{t+1}}{X^{*}}\] Where:

  • \(\alpha\): realistic infection(the sum of the infectious and latent periods), \(\alpha\) = 0.2

  • \(k_{0}\): the factor representing the influence of season \(\theta\)

  • \(X_{*}\): mean number of susceptibles, equivalent to 70 week’s cases reports

  • At the peak of an epidemic, \(C_{t+1} \sim C_{t}\),we have an initial estimate for \(X_{t+1}\), which can be updated by adding the documented births and subtracting the number of cases

=> All that remains now is to fit the seasonality parameter \(k_{\theta}\)

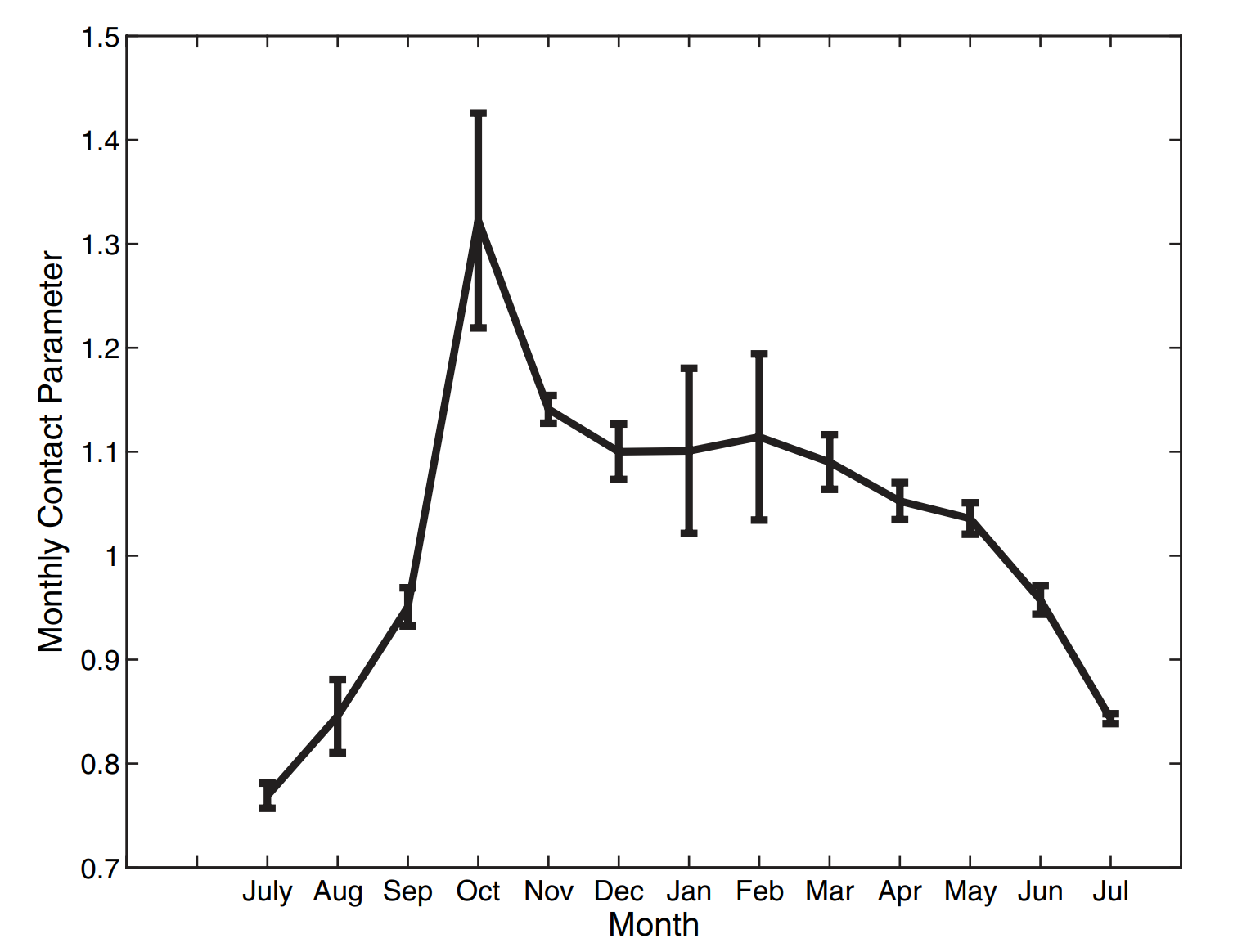

=> Estimated transmission was very low in the summer months, and peaked dramatically in the early autumn (October).

1.2.2 London and Yorke study

(London and Yorke 1973) interested in exploring seasonal influences on transmission, and estimated the mean monthly transmission rates for measles, mumps, and chickenpox in New York City from 1935 to 1972. Key concept:

  • Number of susceptibles (\(X_{p}\)) has the same value at the peak of every outbreak

  • The number of infectious individuals (Y) has reached its maximum, therefore \(\frac{dY}{dt} = 0\)

\[\frac{dY}{dt} = 0 => \beta XY/N - \gamma Y = 0 => X=X_{p} = \frac{\gamma N}{\beta}\]

At the start of the epidemic year, the number of susceptibles = \(X_{p}\) + cumulative number of reported cases for that year.

Then, by using a discrete-time model, they were able to explore the pattern of transmission rates that provided model exposures consistent with the observed case reports.

=> They also found a clearly seasonal pattern of transmission for all three diseases, with a peak that coincided with the start of school terms in the autumn and a trough that occurred during the summer months

1.2.3 More later studies

Since then, more mechanistic approaches for the estimation of transmission rates have been developed, which involve a more detailed “reconstruction” of the number of susceptibles in the population.

First (Fine and Clarkson 1982) and later (Finkenstädt and Grenfell 2000)used used case report data for measles in England and Wales, together with information on the population size and birth rates to estimate transmission rates.

📌 A range of statistical approaches have revealed that transmission of childhood infections varies seasonally, peaking at the start of the school year and declining significantly in the summer months.

1.3 Modelling forcing in childhood infectious diseases: measles

These studies started with the work of (Soper 1929),(Bartlett 1956), and (Bailey 1975), who incorporated seasonality in SIR models with the primary aim of establishing the amplitude of variation in contact rates necessary to produce the observed 80% fluctuation in epidemics.

It is often difficult to consider the forcing of childhood infections without considering age structured models. Throughout this chapter, age structure is ignored for simplicity

(Bailey 1975) explored a simplified SIR model:

\[\frac{dX}{dt} = \mu N - \beta(t) X Y/N \]

\[\frac{dY}{dt} = \beta(t) X Y/N - \gamma Y \] where:

  • \(\mu\) is the per capita birth rate

  • \(\gamma\) is the recovery rate from the infection

The transmission rate is a function of time, β(t), and was taken by Bailey to be a sinusoid:

\[\beta(t) = \beta_{0}(1+\beta_{1}cos(\omega t))\]

where:

  • \(\beta_{0}\): the baseline or average transmission rate

  • \(\omega\): the period of the forcing (\(\frac {2 \pi}{time~unit}\),1 year = \(\frac{2 \pi}{1}\))

  • \(\beta_{1}\): the amplitude of seasonality

To explore the dynamics of small perturbations to the unforced equilibrium, Bailey made substitutions \(X = X∗(1 + x)\) and \(Y = Y ∗(1 + y)\), after omitting some intermediate steps, gives a second order differential equation in the small infectious perturbation y:

\[\frac{d^{2}y}{dt^{2}}+\mu R_{0} \frac{dy}{dt}+\mu \beta y = -\beta_{1} \omega \gamma sin(\omega t)\]

The period of the oscillations is the same as the period of the forcing, the amplitude of oscillations (M):

\[M = \beta_{1}\omega \gamma \{(\mu \beta_{0}-\omega^{2})^{2} + (\omega \mu R_{0})^{2}\}^{-\frac {1}{2}} \]

Making the appropriate substitutions for measles, we set \(\frac{1}{\gamma} = 2\), \(\mu R_{0} \sim 0.014\) and \(\omega = \frac{\pi}{26}\) (taking the week as our basic time unit) => \(M \sim 7.76 \beta_{1}\) ( 10% variation in the transmission parameter translates into seasonal variations of 78% in case notifications)

Butterfly effect: “A butterfly flaps its wings in the Amazon rainforest, and subsequently a hurricane forms in Texas,”

📌 Relatively modest levels of variation in the transmission rate can translate into large amplitude fluctuations in the observed disease incidence

1.3.1 Dynamical Consequences of Seasonality: Harmonic and Subharmonic Resonance

The first systematic examination of seasonality affecting the dynamical pattern of epidemics was made by Klaus Dietz. Dietz carried out a stability analysis of the familiar SIR model:

\[\frac{dX}{dt} = \mu N - (\beta(t) \frac {Y}{N} + \mu) X\]

\[\frac{dY}{dt} = \beta(t) X \frac {Y}{N} - (\mu + \gamma) Y \]

where \(\beta(t) = \beta_{0}(1-\beta_{1}cos(\omega t))\) ( he used a minus sign in his formulation in order to ensure that contact rates were at their lowest at the start of the epidemic year)

Code
curve(1*(1 - 0.5*cos(2*pi*time)), 0, 6,
      n = 1001, xname = "time", xlab = "Time", ylab = "Transmission rate")

He demonstrated that in the absence of seasonal forcing, the system fluctuated with frequency F:

\[F^{2} = \mu (\gamma + \mu)(R_{0}-1) - (\frac{\mu R_{0}}{2})^{2}\]

in many realistic situation \(\mu R_{0} \ll 1\). Dietz pointed out that for cases in which the natural period of oscillations in the SIR model are approximately the same as that of the seasonal forcing (i.e., F ≈ ω), we observe harmonic resonance, where model dynamics mimic those of the forcing, although the amplitude of oscillations may be greatly increased.

For different ratios of \(\frac {\omega}{F}\), however, it is possible for forcing to excite sub-harmonic resonance that gives rise to oscillations with a longer period than the period of the forcing. This phenomenon can occur whenever the natural period of the oscillations \(\frac {1}{F}\) is close to an integer multiple of the period of the forcing \(\frac {1}{\omega}\)

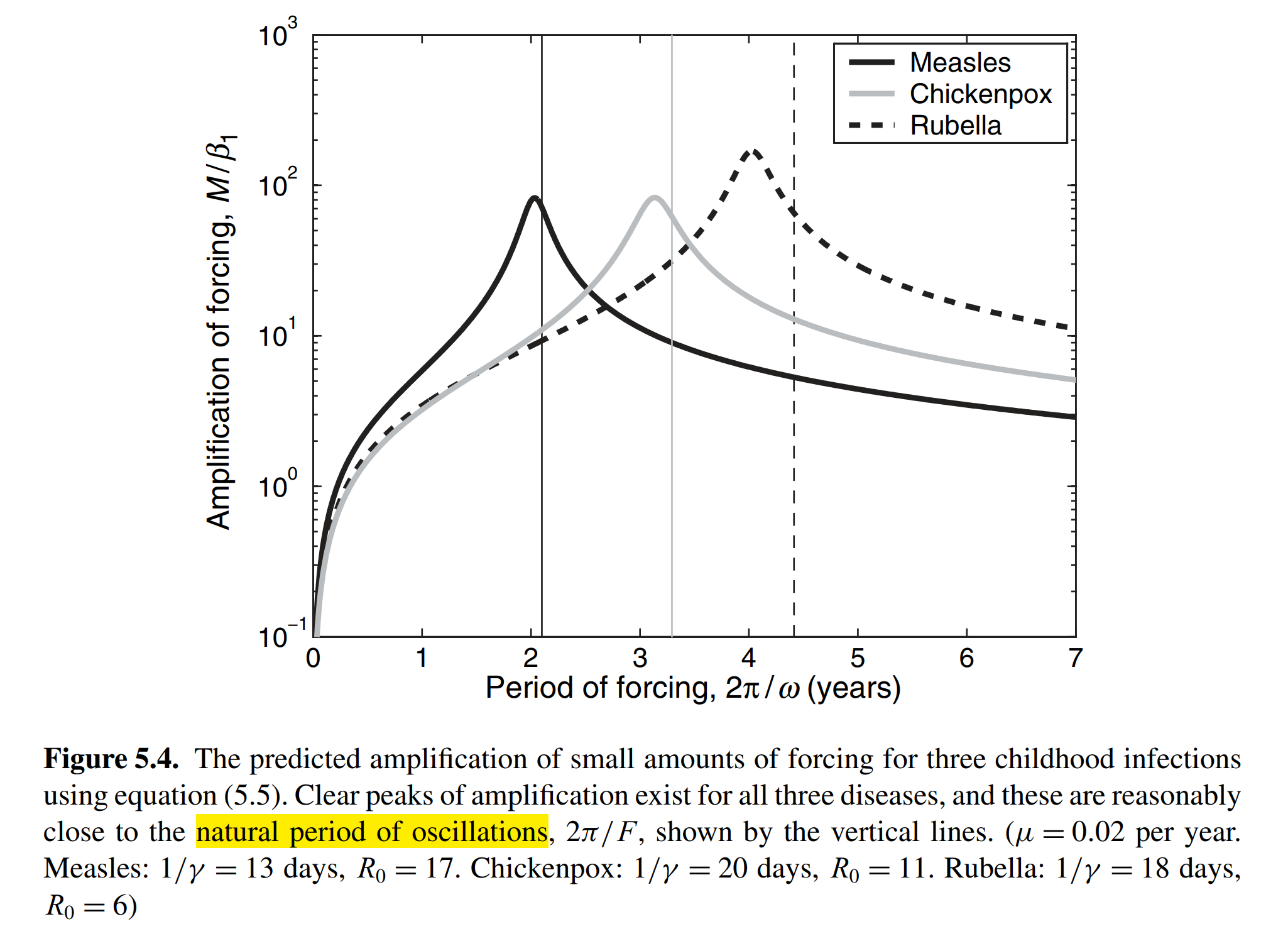

📌 Forcing is most greatly amplified when the forcing period is close to the natural oscillatory frequency of the unforced dynamics.

1.3.2 How the amplitude of seasonality affects dynamics

Changes in either \(R_{0}\) or \(\beta_{1}\) can lead to qualitatively different epidemic patterns:

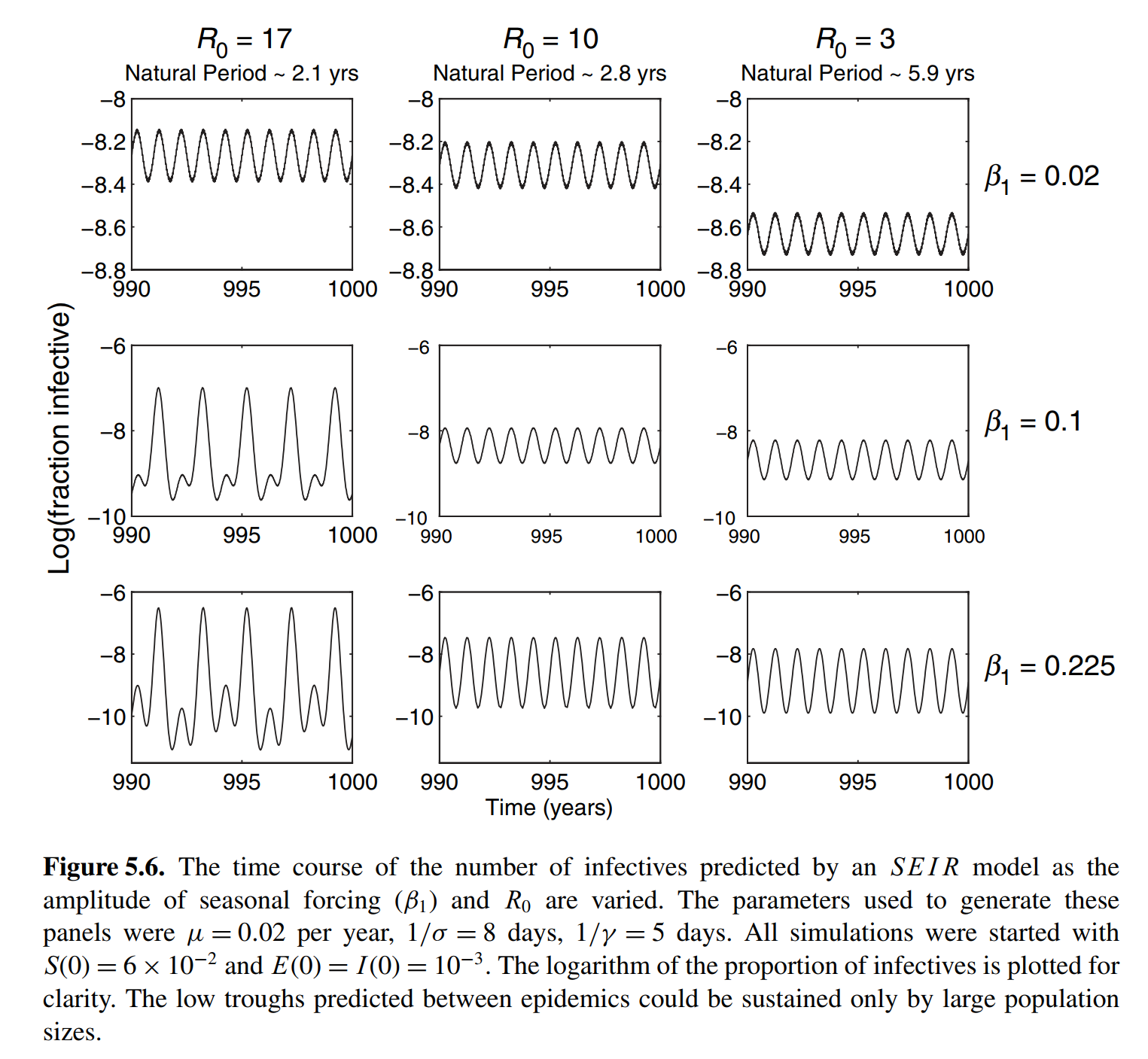

  • Top left: \(R_{0}\) is large, level of seasonal forcing is small => fraction of infecteds (small-amplitude annual epidemics)

  • Middle left: \(\beta_{1} = 0.1\) => we observe subharmonic resonance (as \(\omega\) \(\approx\) 2F), biennial dynamics

  • Bottom left: a further increase in \(\beta_{1}\) => four-year cycles

  • Second and third columns: \(R_{0}\) is smaller, increases in seasonal amplitude => do not influence the period of epidemics (remain annual), but alter the magnitude of oscillations

📌 In the absence of seasonal forcing, the SIR family of models exhibit a stable equilibrium. The introduction of time-dependent transmission rates can generate a variety of dynamical patterns—depending on parameter values—ranging from simple annual epidemics to multiennial outbreaks and eventually chaos.

1.4 Mechanisms of Multi-Annual Cycles

The condition for growth of disease incidence is:

\[\begin{align} \frac {dY}{dt} &= \beta X \frac {Y}{N} - (\gamma + \mu) Y > 0 \\ &= Y (\gamma + \mu) (R_{0}\frac{X}{N}-1) >0 \\ &\Rightarrow \frac{X}{N} >\frac{1}{R_{0}} \approx \frac{\gamma}{\beta} \end{align}\]

The spread only occur when a sufficient fraction of susceptible higher a critical value determined by \(R_{0}\)

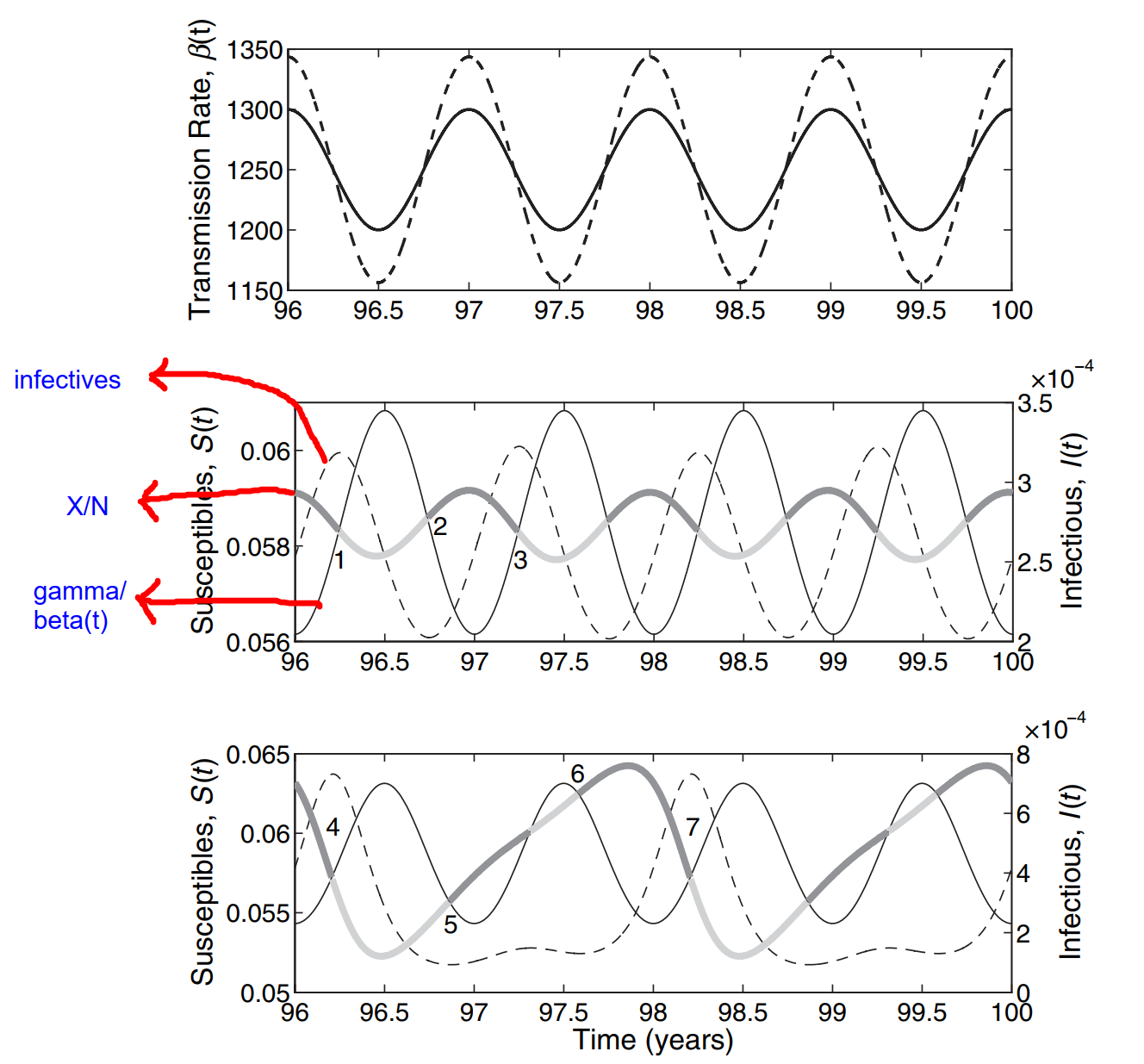

Top panel: solid line(weaker forcing used in middle graph), stronger forcing (dashed line used in lower graph)

  • point 1: The peak of disease incidence when \(\frac{X}{N} < \frac{\gamma}{\beta(t)}\)

  • \(\frac{X}{N}\) continue to decline until the rate of transmission is less than births

  • point 2: \(\frac{X}{N} > \frac{\gamma}{\beta(t)}\) disease incidence rises

  • Bottom graph, the peak of incidence larger (due to larger beta => \(\frac{X}{N}\) fall lower and take longer time to replenish the threshold)

  • point 5: the transmission rate is very near its annual maximum (the threshold is near its minimum) => susceptibles do not remain enough to produce a large epidemic

  • The entire process from point 4 to point 7 takes two years, representing subharmonic resonance

📌 The amplitude of seasonality increases => larger epidemics are generated (lower the level of susceptibles such that recovery to above the threshold takes far longer, resulting in longer period cycles)

  • For \(\beta > 0.0455\), we observed two dots => the dynamic are biennial and repeat every two years

  • For \(\beta > 0.3\), dynamics are largely chaotic with occasional “windows”

1.5 Forcing function

We’ve explored seasonality by assuming that the transmission rate is time dependent and specifically is determined by a simple sinusoidal function, this view has changed in recent years:

  • seasonally forced models of childhood infections now more often use a square wave

  • the transmission rate is assumed to be high during school terms and low at other times

\[\beta(t)=\beta_{0}(1+b_{1}Term(t))\]

where:

  • \(Term(t)\) is +1 during the school term and −1 at other times.

  • \(b_{1}\) to represent the amplitude of seasonality

Table 1.1: Timings of the major school holidays when Term = −1; during all other times Term = +1.
Holiday Model days Calender dates
Chirstmas 356-6 December 21 - January 6
Easter 100-115 April 10-25
Summer 200-251 July 19 - September 8
Autumn Half Term 300-307 October 27-November 3

We obtain 92 school holidays , 273 days of school => many more “+1” days than “−1” days => give rise to a mean transmission rate averaged over the year. To ensure R0 is constant irrespective of the precise forcing function used and the amplitude of seasonality. If there are \(D+\) days of school and \(D−\) holidays, then our forcing function would be:

\[\beta(t)=\frac{\beta_{0}}{\frac{1}{365}((1+b_{1})D_{+}+(1-b_{1})D_{-})}(1+b_{1}Term(t))\]

Code
library(odin2)
library(dust2)
library(tidyverse)
library(latex2exp)

beta_0 <- 1250
beta_1 <- 0.25
t <- seq(0,365,le = 1001)

## sinusoidal function
omega <- (2*pi)/365
beta_sin_func <- data.frame(x = t,
                            y = beta_0*(1 + beta_1*cos(omega*t)))

## term time tranmission function

schools_time <- c(0, 7, 100, 116, 200, 252, 300,308,356)
schools_open <- c(-1, 1, -1, 1,   -1,   1,   -1, 1,-1)

beta <- approx(
  schools_time,
  beta_0*(1 + beta_1*schools_open),
  xout = t,
  method = "constant",
  rule = 2)

## correct term time tranmission function
mean_beta <- 1/365*((1+beta_1)*273+(1-beta_1)*92)

beta_correct <- approx(
  schools_time,
  beta_0/mean_beta*(1 + beta_1*schools_open),
  xout = t,
  method = "constant",
  rule = 2)

1.5.1 Seasonal forcing model with odin2

Code
schools_time <- c(0, 7, 100, 116, 200, 252, 300,308,356)
schools_open <- c(-1, 1, -1, 1,   -1,   1,   -1, 1,-1)

sis <- odin({
    deriv(S) <- -beta * I * S / N + gamma * I
    deriv(I) <-  beta * I * S / N - gamma * I
    deriv(trans_rate) <-  beta

    initial(S) <- N - I0
    initial(I) <- I0
    initial(trans_rate) <-  beta

    I0 <- parameter(10)
    N <- parameter(1000)
    schools <- interpolate(schools_time, schools_open, "constant")
    schools_time <- parameter(constant = TRUE)
    schools_open <- parameter(constant = TRUE)
    dim(schools_time, schools_open) <- parameter(rank = 1)
    beta0 <- parameter(0.125)
    beta_1 <- parameter(0.025)
    beta <- beta0*(1 + beta_1*schools)
    gamma <- 0.1
})
── R CMD INSTALL ───────────────────────────────────────────────────────────────
* installing *source* package 'odin.systemaa6f1137' ...
** using staged installation
** libs
using C++ compiler: 'G__~1.EXE (GCC) 13.2.0'
g++ -std=gnu++17  -I"C:/PROGRA~1/R/R-44~1.3/include" -DNDEBUG  -I'D:/Cá nhân/note_book_web/renv/library/windows/R-4.4/x86_64-w64-mingw32/cpp11/include' -I'D:/Cá nhân/note_book_web/renv/library/windows/R-4.4/x86_64-w64-mingw32/dust2/include' -I'D:/Cá nhân/note_book_web/renv/library/windows/R-4.4/x86_64-w64-mingw32/monty/include'   -I"C:/rtools44/x86_64-w64-mingw32.static.posix/include"  -DHAVE_INLINE -fopenmp    -O2 -Wall  -mfpmath=sse -msse2 -mstackrealign  -Wall -pedantic -c cpp11.cpp -o cpp11.o
g++ -std=gnu++17  -I"C:/PROGRA~1/R/R-44~1.3/include" -DNDEBUG  -I'D:/Cá nhân/note_book_web/renv/library/windows/R-4.4/x86_64-w64-mingw32/cpp11/include' -I'D:/Cá nhân/note_book_web/renv/library/windows/R-4.4/x86_64-w64-mingw32/dust2/include' -I'D:/Cá nhân/note_book_web/renv/library/windows/R-4.4/x86_64-w64-mingw32/monty/include'   -I"C:/rtools44/x86_64-w64-mingw32.static.posix/include"  -DHAVE_INLINE -fopenmp    -O2 -Wall  -mfpmath=sse -msse2 -mstackrealign  -Wall -pedantic -c dust.cpp -o dust.o
g++ -std=gnu++17 -shared -s -static-libgcc -o odin.systemaa6f1137.dll tmp.def cpp11.o dust.o -fopenmp -LC:/rtools44/x86_64-w64-mingw32.static.posix/lib/x64 -LC:/rtools44/x86_64-w64-mingw32.static.posix/lib -LC:/PROGRA~1/R/R-44~1.3/bin/x64 -lR
installing to C:/Users/ASUS/AppData/Local/Temp/RtmpOQSFlm/devtools_install_2b3c182e2ac6/00LOCK-dust_2b3c4e0e416c/00new/odin.systemaa6f1137/libs/x64
* DONE (odin.systemaa6f1137)
Code
pars <- list(schools_time = schools_time,
             schools_open = schools_open,
             beta0 = 0.125,
             beta_1 = 0.25,
             N = 5e6,
             I0 = 100)
sys <- dust_system_create(sis(), pars)

dust_system_set_state_initial(sys)
t <- seq(0, 600, length.out = 501)
y <- dust_system_simulate(sys, t)
y <- dust_unpack_state(sys, y)

1.5.2 Compare 2 methods

The choice of functional form used to represent seasonality in the transmission term can have a substantial qualitative, as well as quantitative, dynamical effect

Two-dimensional bifurcation figures below show results using a fixed set of initial conditions tend to show more multiennial cycles.

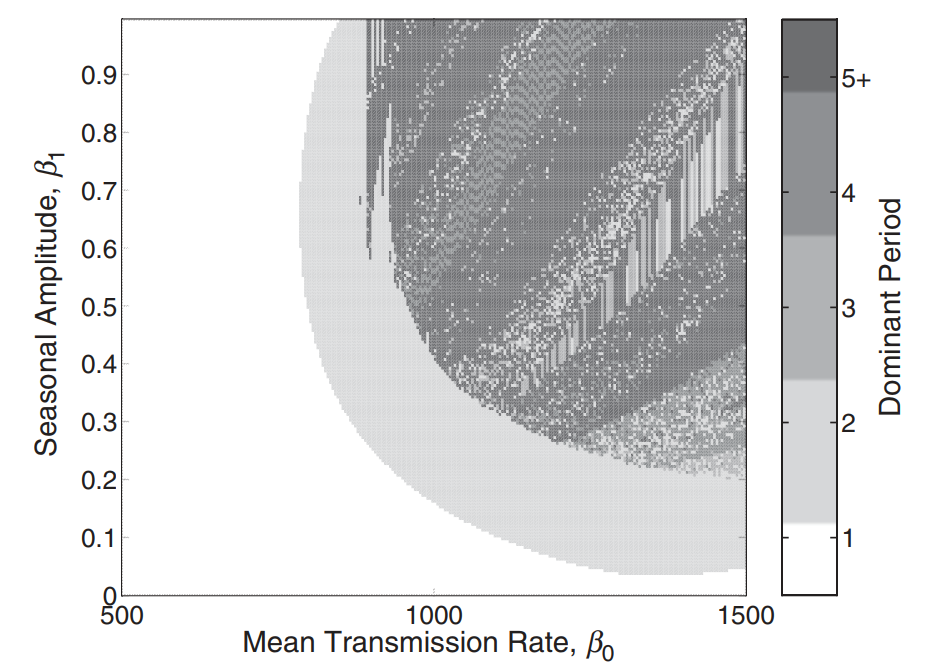

sinusoidal SEIR-force model

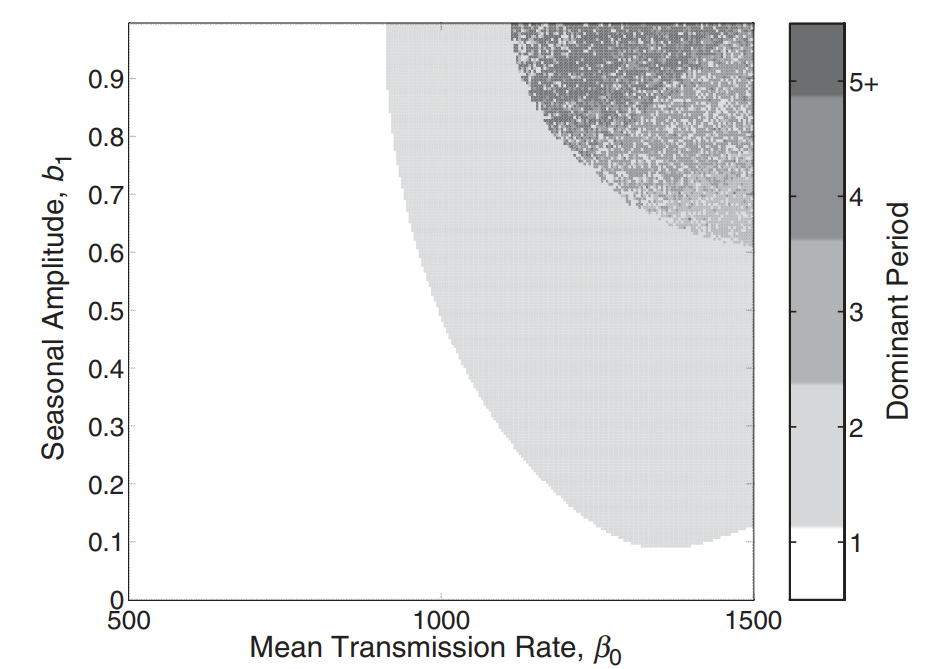

corrected term-time SEIR-force model

  • With the mean transmission rate fixed at 1,250 per year, the bifurcation from annual to biennial epidemics occurs at a larger amplitude of seasonality for the term-time forcing (\(b1 \sim 0.1285\) compared with \(\beta_{1} \sim 0.0455\)).

  • The term-time forced models exhibit biennial epidemics for a far larger region of the parameter space with irregular (quasiperiodic or chaotic) outbreaks observed only once b1 exceeds approximately 0.6 (compared to \(\beta_{1}\) > 0.2)

  • The sinusoidal-forced model generates very large amplitude dynamics with the proportion of infectives often falling below \(10^{-20}\) when \(\beta_{1}\) is large, term-time forcing the proportion of infectives in the troughs of epidemics always exceeds \(10^{-10}\)

1.6 Conclusion

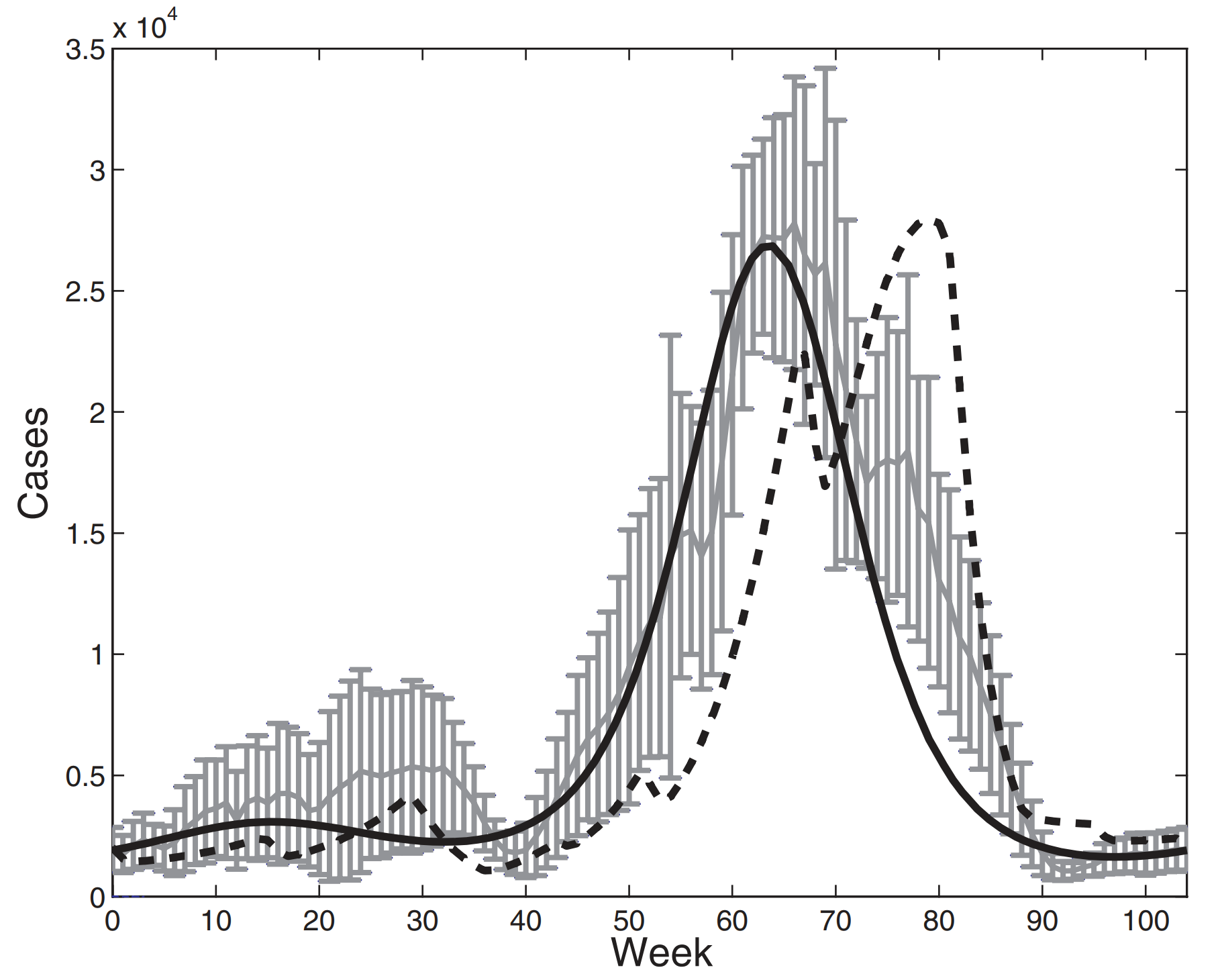

Gray line: measles data and standard error, black-solid: sinusoidal, dotted line: corrected term forced model
Seasonal forcing Term time Sinusoidal
Best fit \(b_{1} = 0.29\) \(beta_{1} = 0.11\)
Associated error \(E_{v} = 1.18\) \(beta_{1} = 0.64\)

  • The best-fit model with sinusoidal forcing results in a lower error because it more accurately captures the timing of the epidemic peak.

  • The best-fit model with term-time forcing generates an epidemic peak that is slightly delayed, even though it captures more of the qualitative properties of the biennial cycle.

📌 This discrepancy highlights the need for extra biological detail: A more realistic distribution for the latent and infectious periods or including age structure greatly reduces the error associated with term-time forcing.
